What is record sync used in vDesigner 1.0?

vDesigner
1

What is record sync used in vDesigner 1.0?

4 Likes
2

When this task executes, it syncs all un-synced records at the database level. It allows you to sync the records based on theRecord where clause condition of the SQL query. On the basis of the record where clause, the Record Sync task picks the un-synced records from the respective service and then sync them.

To apply the Record Sync task:

  1. On the Task dialog box, see the left navigation panel.

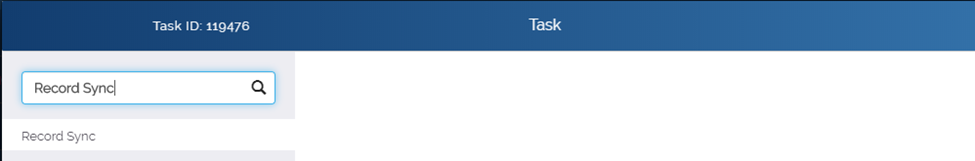

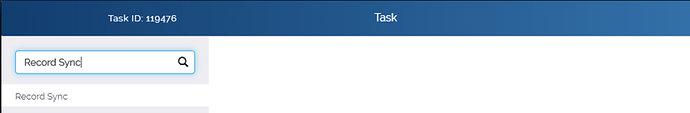

  2. In the Search by task box, enter Record Sync, and the left panel displays the Record Sync task.

    rs1
    rs1975×161 16.4 KB

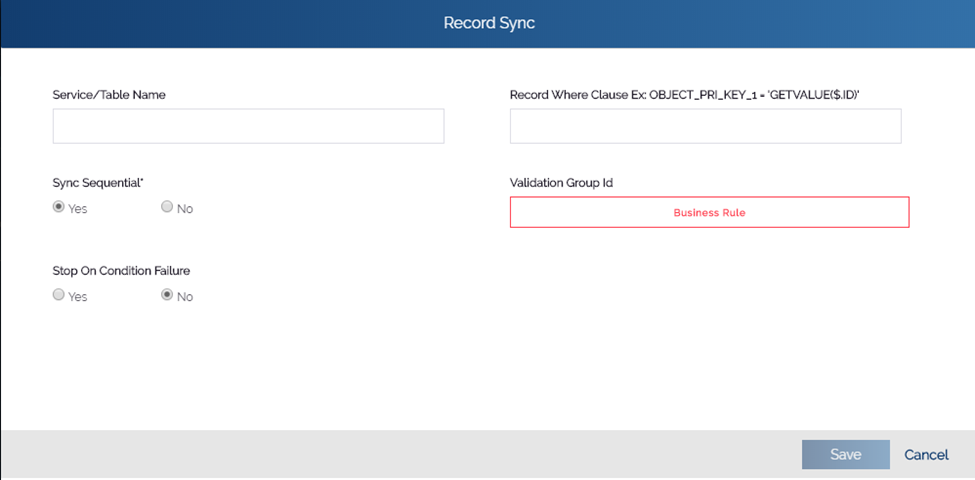

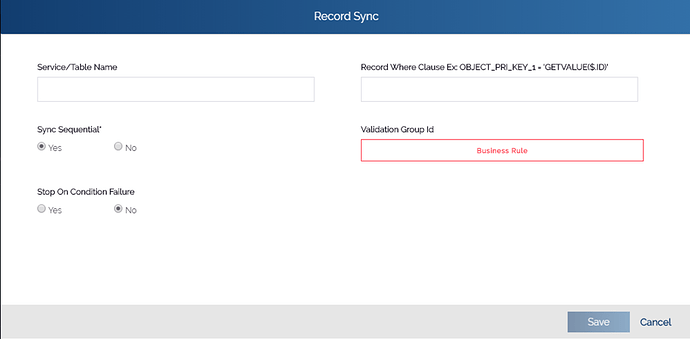

  3. In the left panel, click Record Sync, and the Record Sync dialog box opens.

    rs2
    rs2975×480 35.6 KB

  4. In the Record Sync dialog box, enter the values as follows:

  • Service/Table Name- Enter the name of web service (For example: – SPMBINSERTAOFOBJDATA ) that the Record Sync task accesses to pick the un-synced records.
  1. After you enter the service name and the where clause condition, click Save to close the Record Sync dialog box.
  2. In the Task dialog box, click Save to successfully configure the Record Sync task.
4 Likes
