What is Print Element and How to use it?

There is a Print element available in vDesigner 1.0, What is the usage of that element?


Print element is used to show user a button kind of representation for triggering the printer. Right now in vDeisgner 1.0 only Evolute printer is integrated. Other printers need to be raised to product team and get them integrated.

Print element and Call print both have the same functionality. Only different is the representation. Task can be triggered via any event and button. But Print element is to show user a specific button and trigger the printing task. by default.


@tushar.jain can you pls provide the steps?

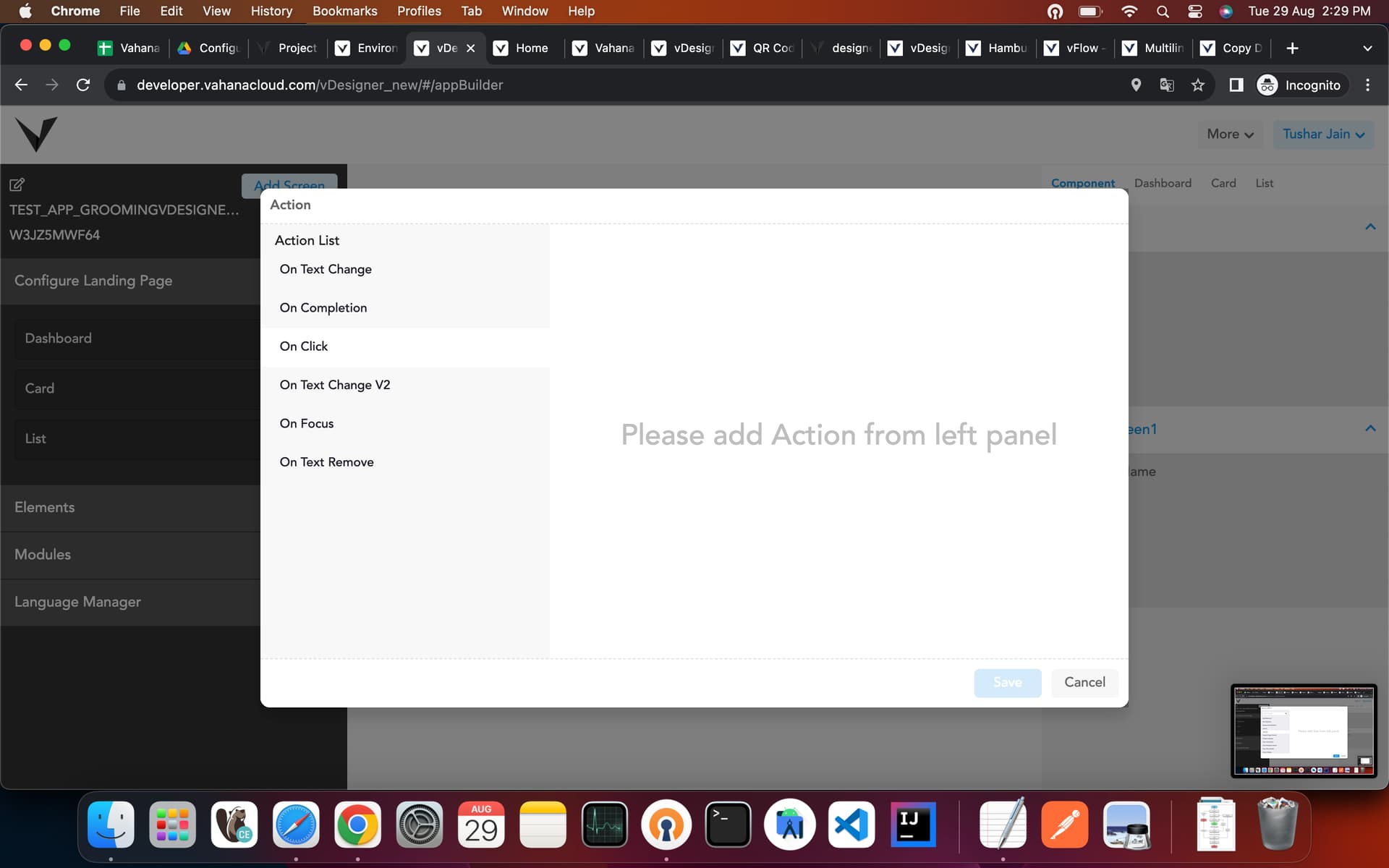

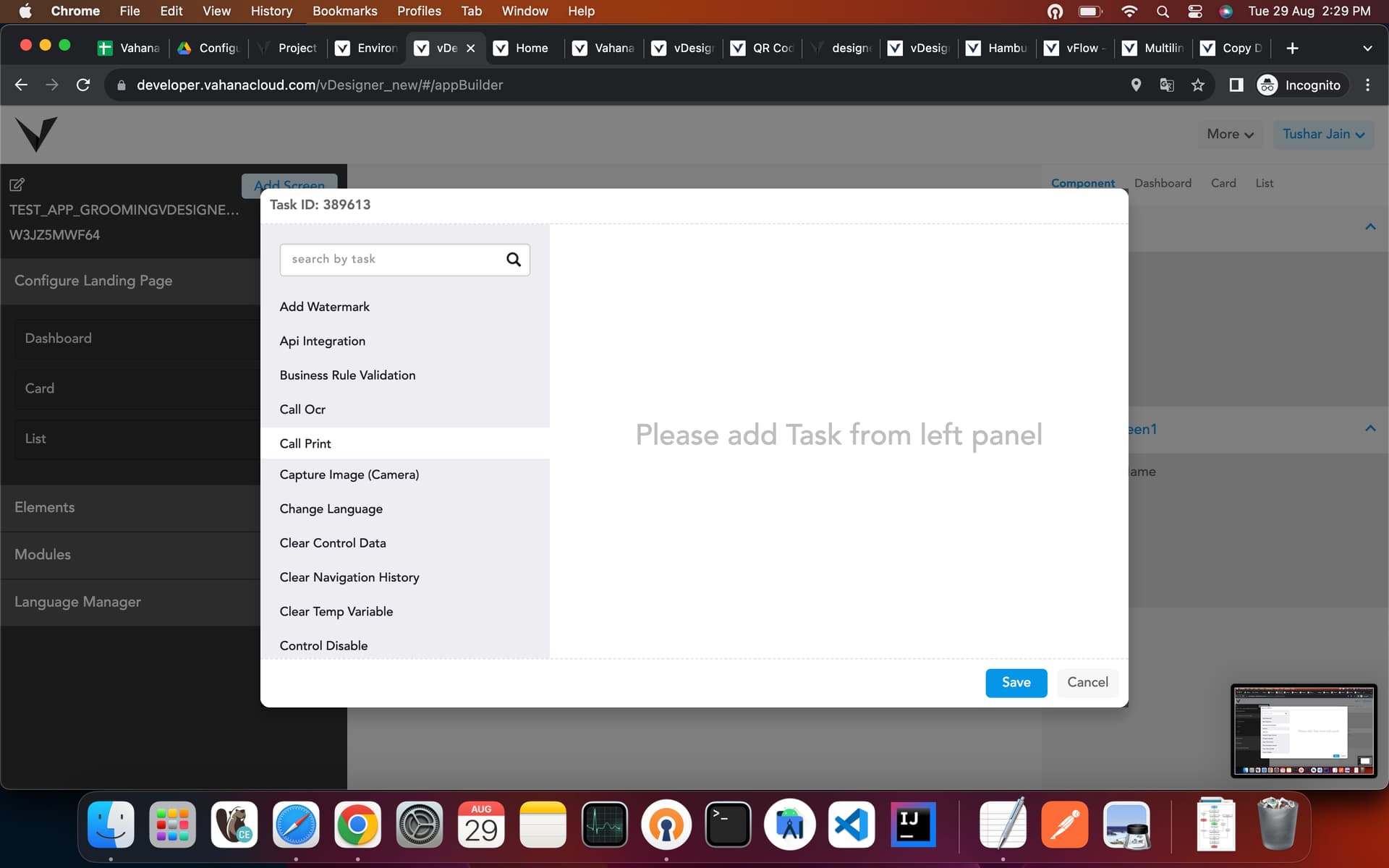

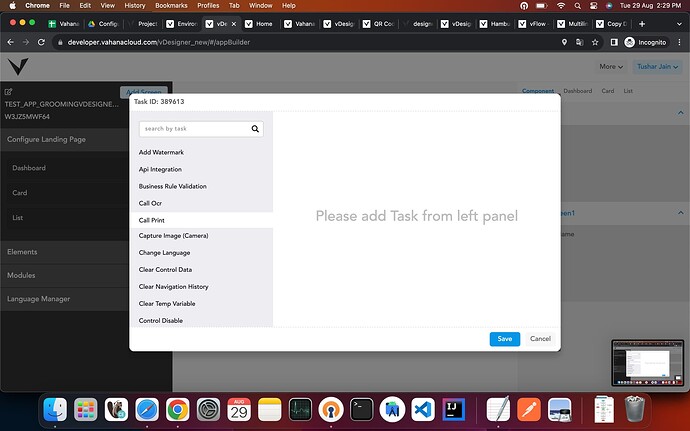

Sure, Click on any element and then select an Event then choose the Call print task to apply.

As per below screenshots:

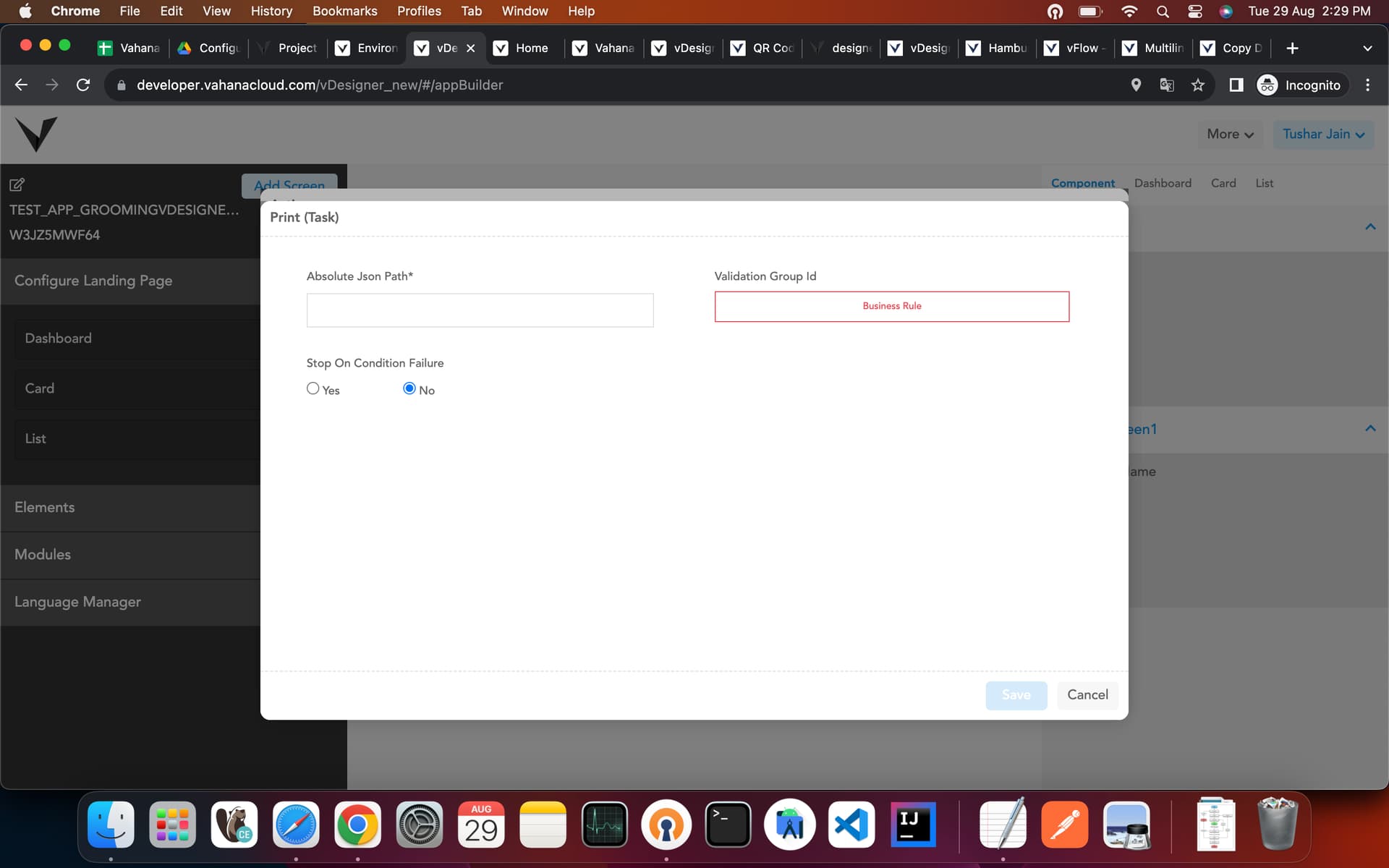

In the task just provide the path of JSON where you have stored data what needs to be printed.
