Upload service name for document uploader

What is the service name which gets called when we use document uploader. because we don’t create that through vconnect.

5 Likes

Service Name: DMS_FETCH_MEDIA_OBJECT_FILTER

8 Likes

Please explain. For eg expected params and response

2 Likes

@radhika this service is to fetch the documents after we have already uploaded it. i’m searching for the service which uploads the document to the bucket

5 Likes

i’m searching for the service which uploads the document to the bucket when we use the document uploader element. we only have to configure the fetch, delete, and fetch url service on Vconnect and on the element and the service for the DMS upload runs automatically. So i want to find the service on the Vlogs to find what document bundle id is being used.

3 Likes

@Abhinav_mehta As per my knowledge, there is no service present

You have to just pass parameter like object pri key 1 : Doc_id

6 Likes

But how the document is been uploaded to the AWS bucket without any service running

2 Likes

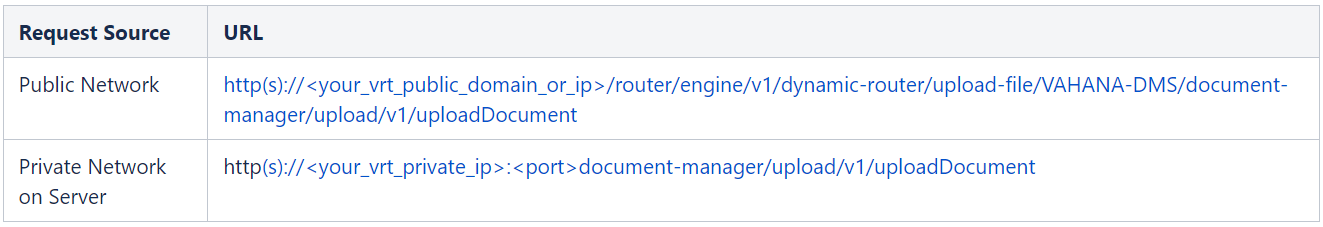

Upload Media API is used to upload different types of media data via Vahana Document Manager. It accepts the multipart request & media data object in request.

Method

POST with Form-Data

Form Data Request

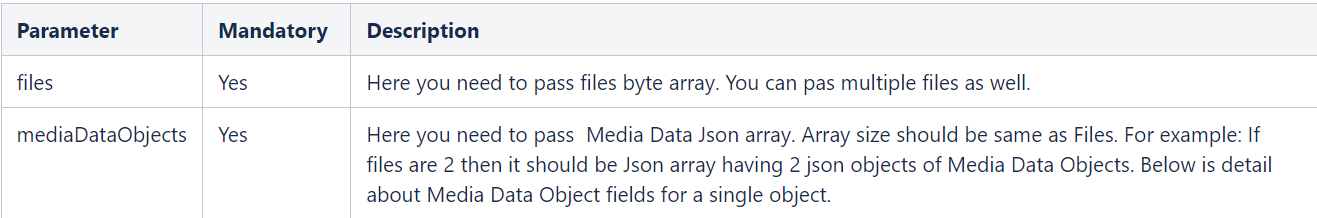

As mentioned above also, this is Form Data based Post request. So below two parameters are expected in this request post body:


files: Multipart request for multiple files.

mediaDataObjects:

[

{

"id" : "himanshimanchandaaaaaaaaaaa" ,

"formId" : "formId" ,

"controlId" : "controlId" ,

"fileDefId" : "fileDefId" ,

"docId" : "docId" ,

"expiryTime" : ""

"docType" : "docType" ,

"docSubType" : "docSubType" ,

"docBundleId" : "docBundleId" ,

"mediaDetails" : {

"fileType" : "" ,

"fileName" : "fileName" ,

"fileCaption" : "fileCaption" ,

"fileMimeType" : "fileMimeType"

},

"objectPriKey1" : "MKALERTBQEDE" ,

"objectPriKey2" : "MN" ,

"objectPriKey3" : "" ,

"deviceCreateTimestamp" : "deviceCreateTimestamp" ,

"deviceModifyTimestamp" : "deviceModifyTimestamp" ,

"customMetadata" : {},

"keepDeletedImage" : "keepDeletedImage" ,

"recSyncStatus" : "" ,

"recSyncTimestamp" : "" ,

"deactivatedBy" : "" ,

"documentError" : "" ,

"status" : "ACTIVE" ,

"text1" : "" ,

"text2" : "" ,

"text3" : "" ,

"text4" : "" ,

"text5" : ""

}

]

Success Response
{

"status" : "SUCCESS" ,

"statusCode" : "VAHANA_DMS_200" ,

"message" : "Media uploaded successfully" ,

"response" : [

{

"id" : "himangdksdgkshimanchandaaaaaaaaaaa" ,

"uploadStatus" : "SUCCESS" ,

"errorMessage" : "" ,

"mediaDetails" : {

"thumbnail" : "http://13.233.90.107:8090/images/image.png" ,

"fileSize" : "308095 kb" ,

"fileType" : "" ,

"fileName" : "fileName" ,

"fileCaption" : "fileCaption" ,

"fileMimeType" : "fileMimeType"

},

"keepDeletedImage" : "keepDeletedImage" ,

"deactivedBy" : "" ,

"deactivedByPrc" : null ,

"createTimestamp" : "2020-12-07T05:45:24.586+00:00" ,

"createdBy" : "Mayank" ,

"createdByReqeustId" : "MKKKKK1" ,

"modifiedTimestamp" : "2020-12-07T05:45:24.586+00:00" ,

"modifiedBy" : "Mayank" ,

"lastModifiedBy" : "Mayank" ,

"storageDetails" : "S3"

}

],

"errorResponse" : null

}

Http status code : 200

7 Likes

@Nikhil.Dhanda Please correct me if something is wrong

3 Likes
