Technical architecture behind Admin Portal?

General
1

What is technical architecture behind Admin Portal?

2

Admin Portal have currently six modules

  1. Admin Portal Frontend (Angular Application)
  2. Admin Portal Backend (Spring Boot Application)
  3. Workflow Manager (Spring Boot Application)
  4. BFSI Connector (Spring Boot Application)
  5. MDM (Spring Boot Application)
  6. MDM Frontend (Angular Application)

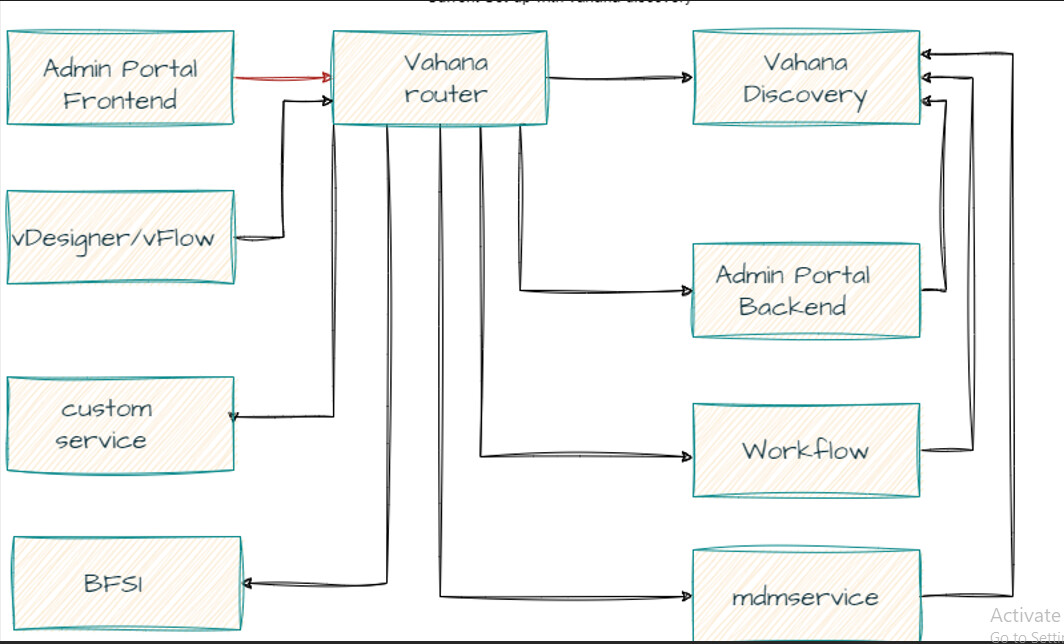

image1064×644 128 KB

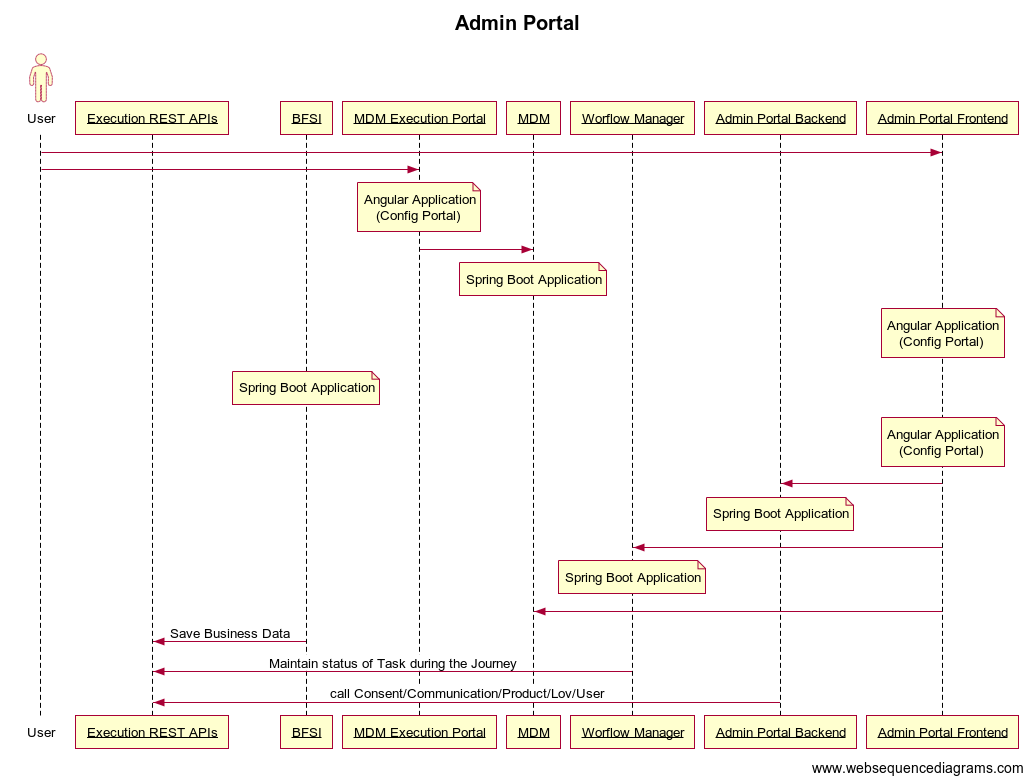

Admin Portal (1)
Admin Portal (1)1033×783 44.7 KB

3

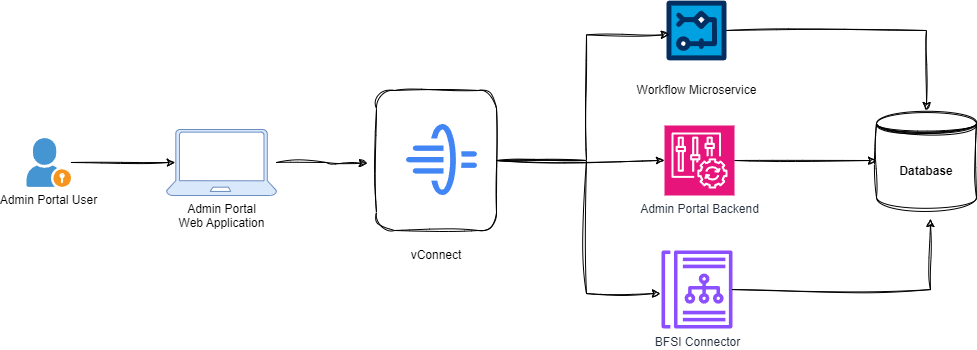

Architecture-Basic-L0
Architecture-Basic-L0977×350 27.4 KB

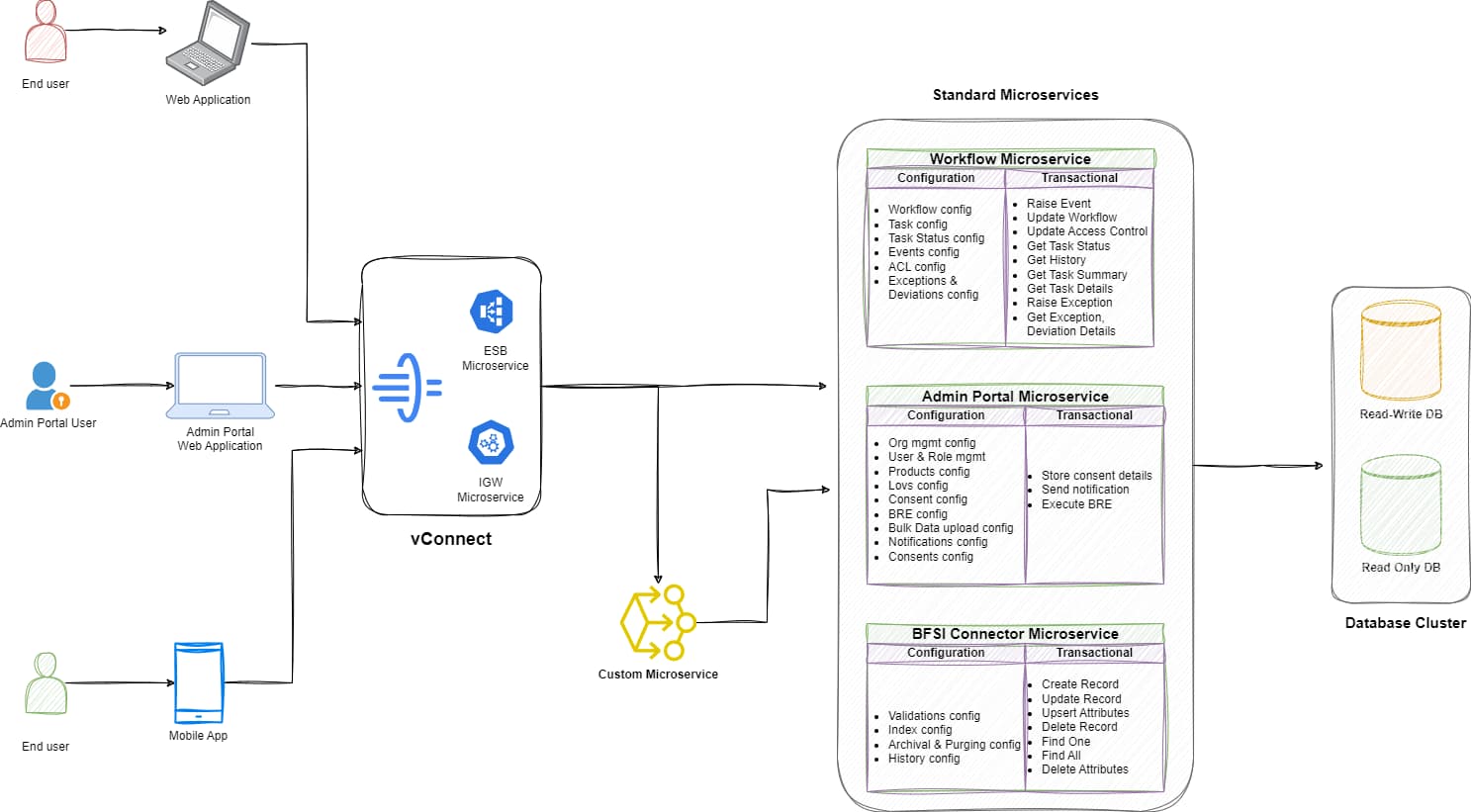

Architecture-Basic-L1
Architecture-Basic-L11487×821 83 KB

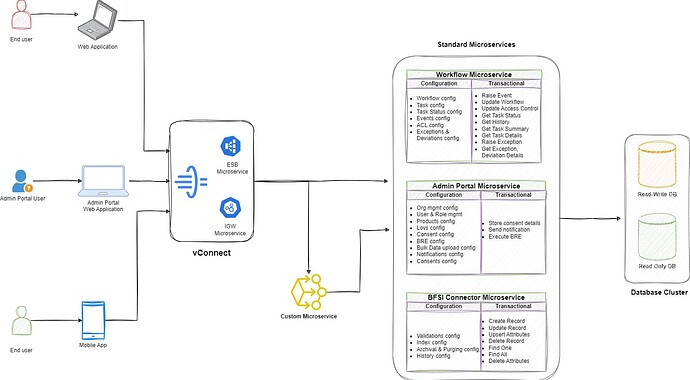

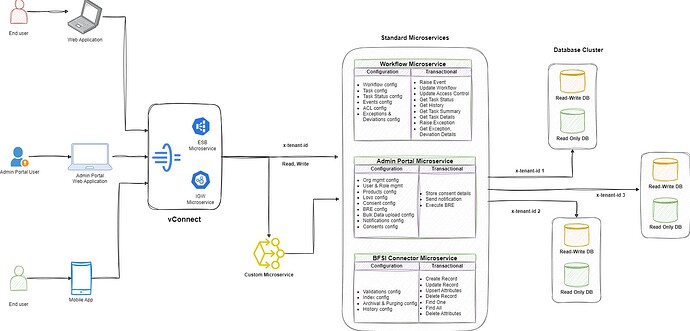

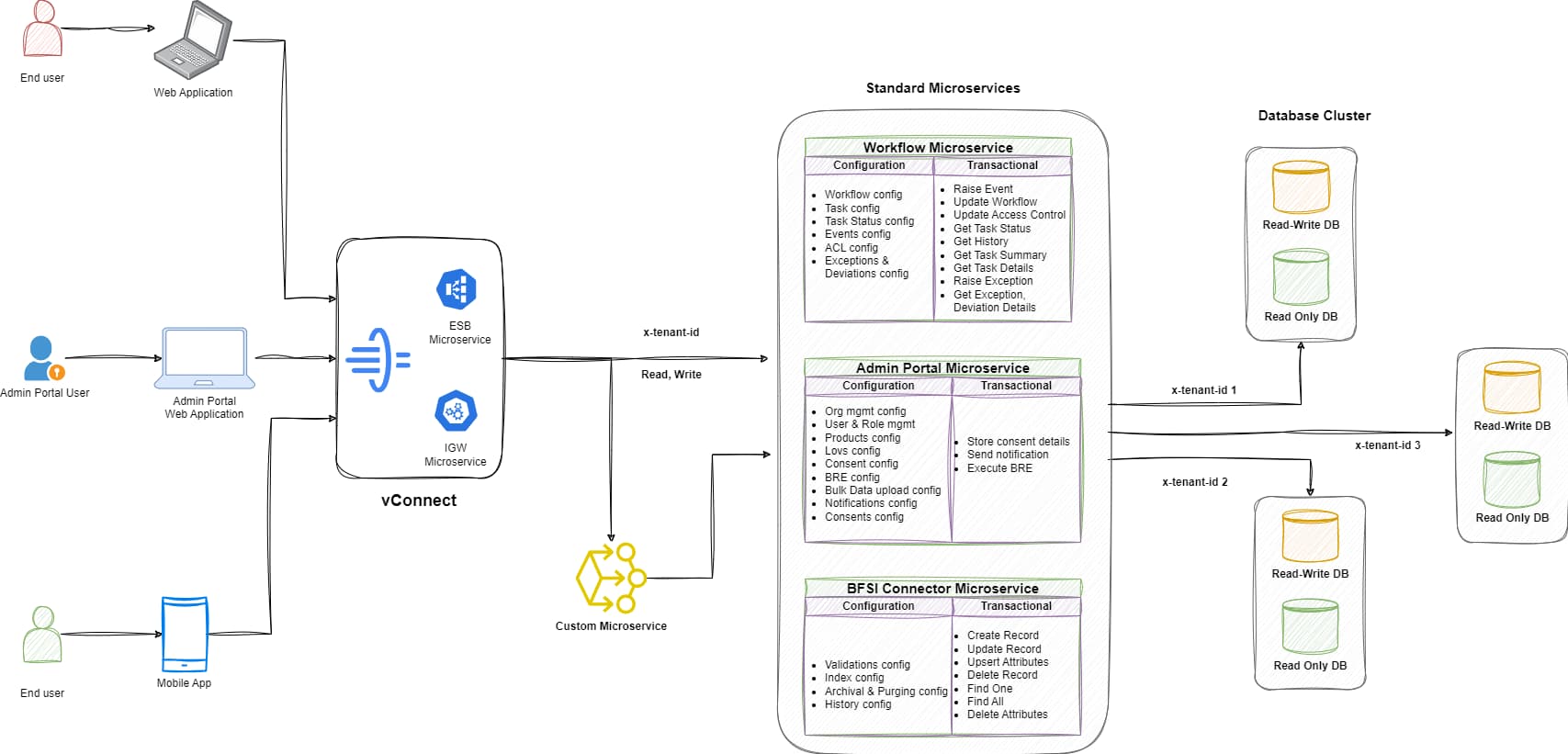

Architecture-Admin Portal L2
Architecture-Admin Portal L21707×821 95.8 KB
