How to configure MDM in vFlow

vFlow
, ,
1

How to configure Master Data Management in vFlow? Please Explain.

1 Like
2

@shankar.srivastav @Nikhil.Dhanda Could you please answer?

3

Please follow below steps to integrate the MDM in vFlow Application:

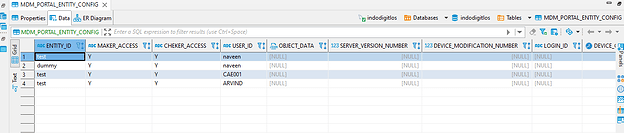

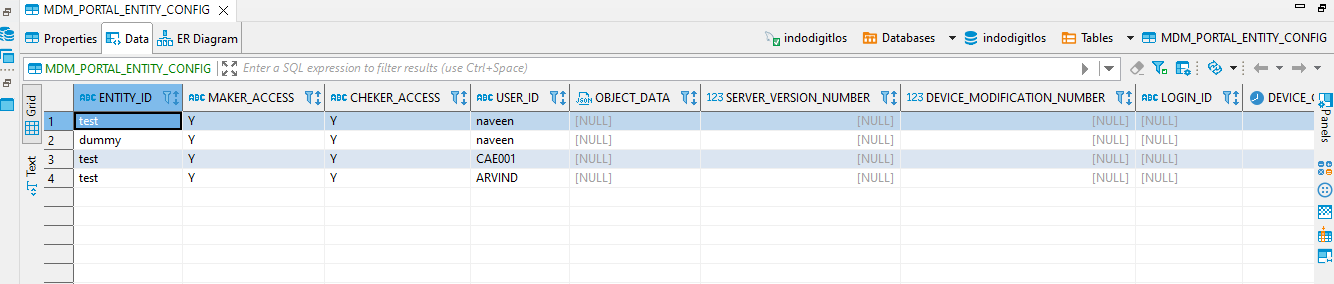

  1. First create a table in database and manage the entity(which you configure on developer portal) access for maker/checker as show below:

1334×284 19.3 KB

  1. Create a database API with below query:
SELECT ENTITY_ID as entityId, MAKER_ACCESS as makerAccess, CHEKER_ACCESS as checkerAccess FROM MDM_PORTAL_ENTITY_CONFIG mpec WHERE IS_ACTIVE ='Y' AND USER_ID = '${LOGIN_ID}';
  1. Call GENERATE_SSO_TOKEN service with below parameter:
{
    "orgId": "<MDM_ORG_ID>",
    "appId": "<MDM_ORG_ID>",
    "loginId": "<LOGIN-ID>",
    "data": "[{ \"entityId\": \"Employee\", \"makerAccess\": \"Y\", \"checkerAccess\": \"Y\" }]" // from point 2 response
}
  1. Make the final URL for MDM Execution Portal as below:
{{MDM_BASE_URL}}/sso_token={{FROM 3 POINT RESPONSE}}&loginId={{LOGIN_USER_ID}}
  1. Redirect user to above URL.
1 Like
