Please provide the screenshots as well.
To configure Image Viewer follow the below steps:-
- Create image viewer element such as inside the fieldset.

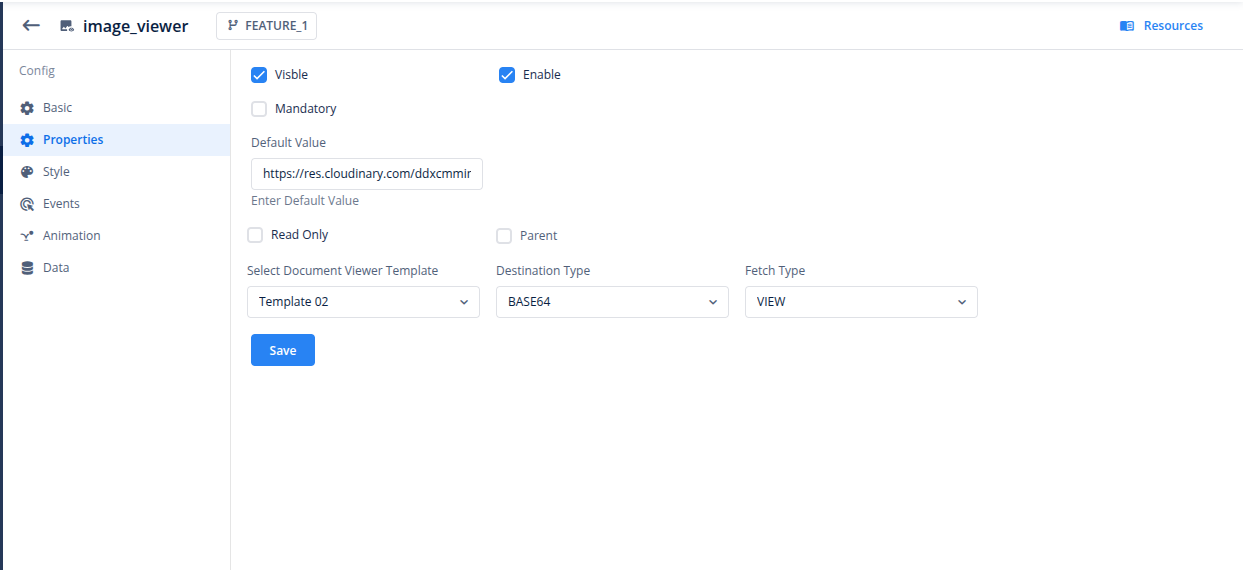

- Go to properties section and proivde a URL of the image under the “default Value”.
- Set “select document type” as Template2 “Destination Type” as BASE64 and “FETCH TYPE” as VIEW.

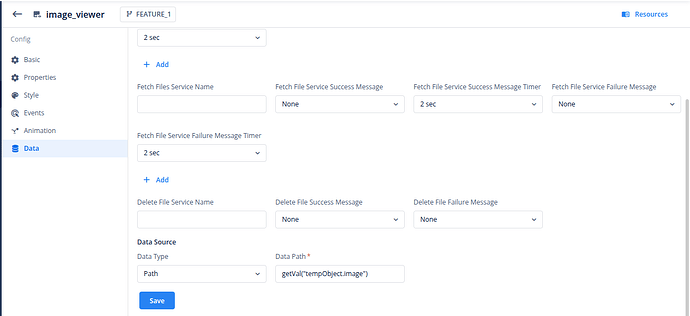

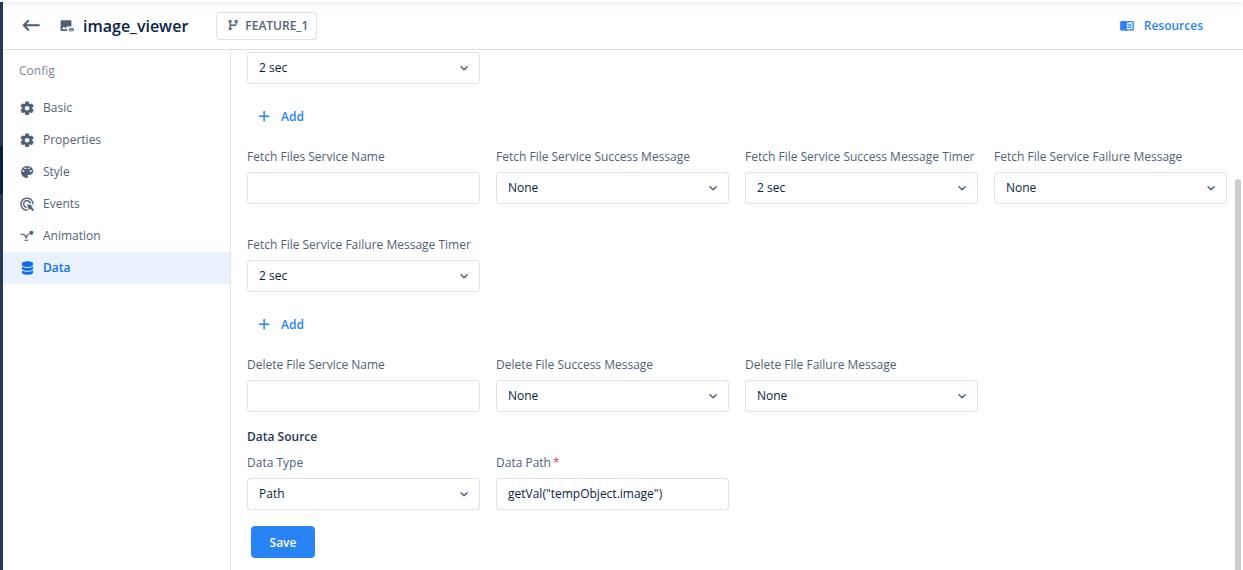

- Go to data section and under “Data Source” select path and under “Data Path” you can provide a path under getVal().

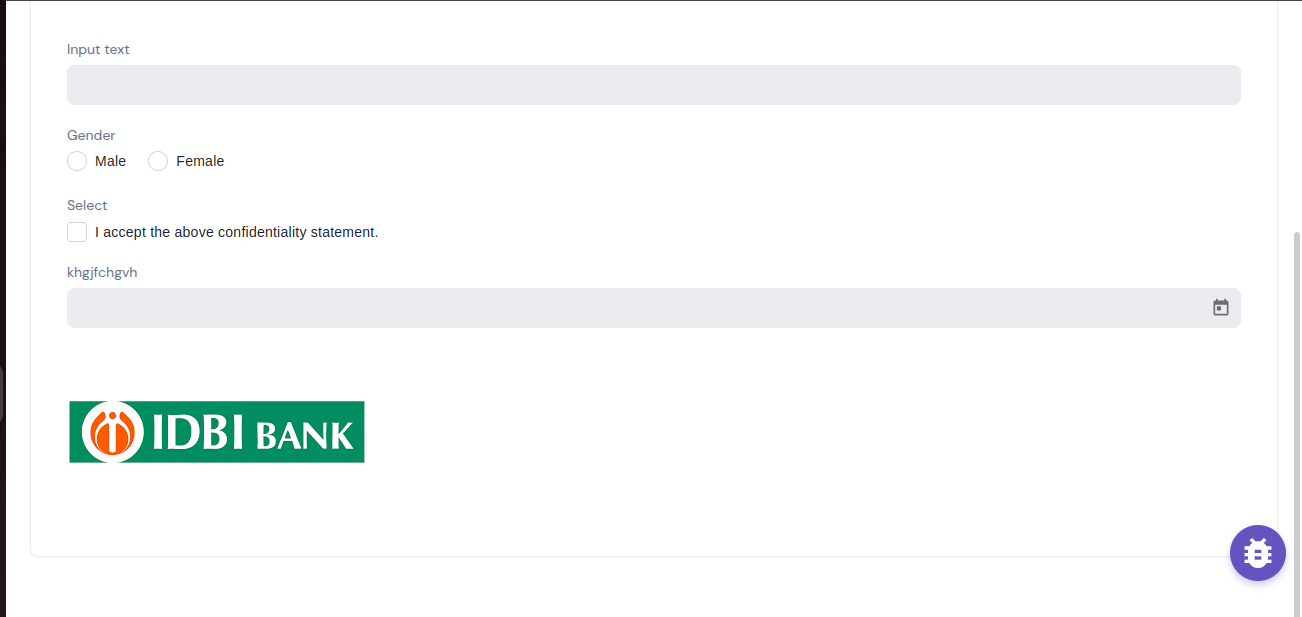

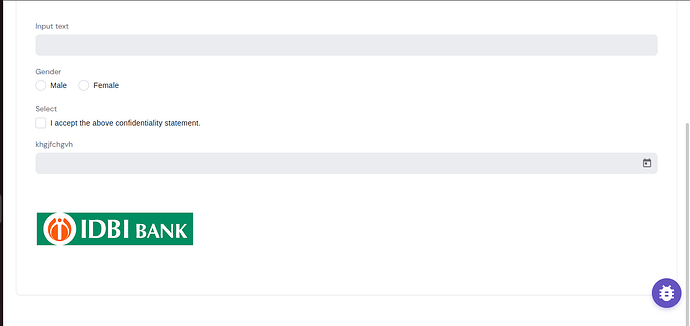

By using above steps you can use a static image on the image viewer element and if you want to display a dynamic image then in that case you have to use DMS services in it.
