Copy Data in vDesigner 2.0

Can I copy data from a path using this task? If yes, kindly provide the steps.


Step 1: Drop the copy data task in the execution block.

Step 2: Click on the tree icon on the right side of “Copy Data” field.

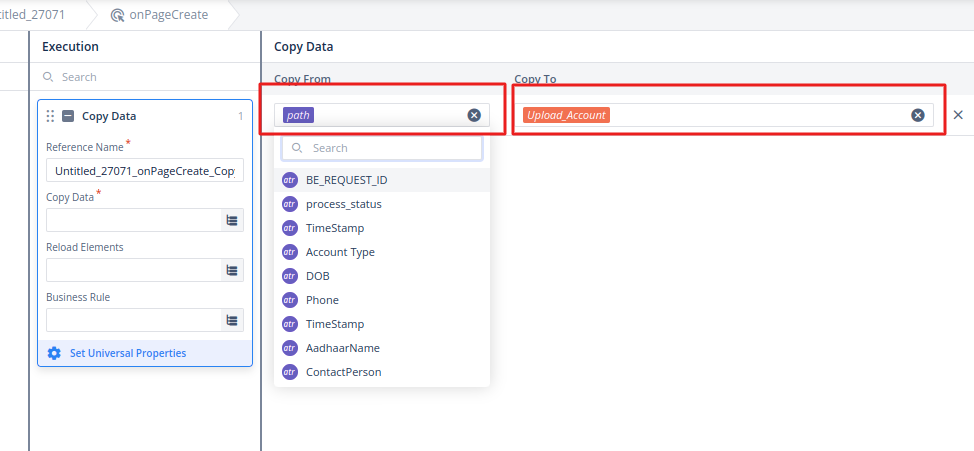

Step 3: Click on “Copy From” field and select the value from the dropdown in which you want to copy from the element, attribute, entity, system data and functions.

Step 4: Click on the “Copy To” field and select the value in which you want to store the value to attribute, element and entity.

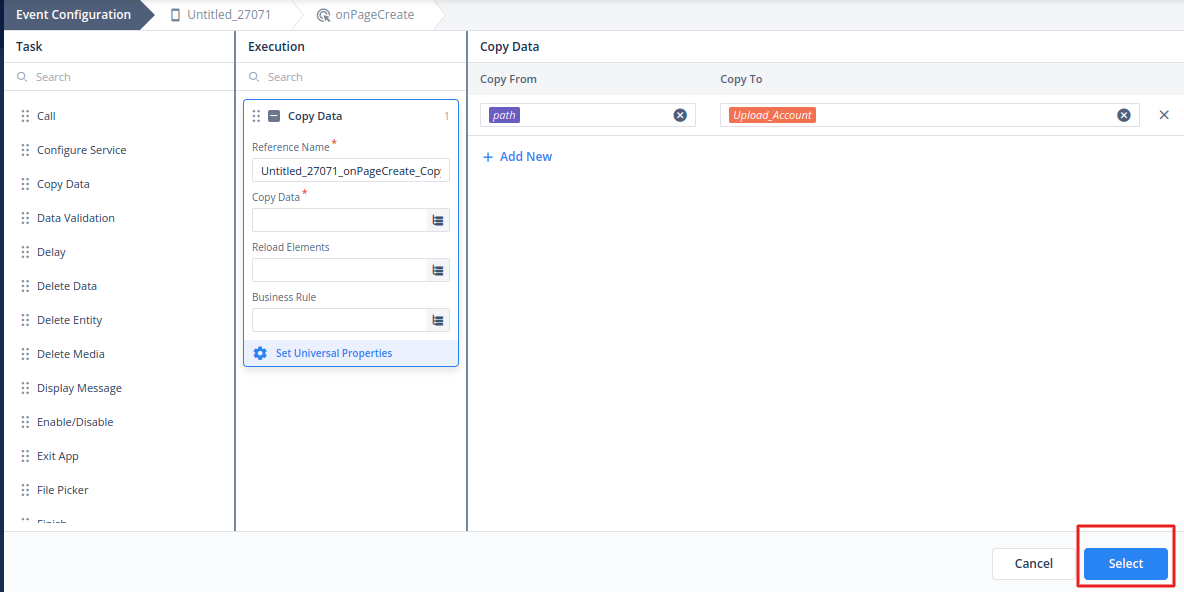

Step 5: After selecting the value in Copy From and Copy To field. Click on the “Select” button which is available in the bottom right of the screen. This make the chip in “Copy Data” field.

Step 6 (Optional): In the copy data task there is a “Reload Elements” field. This is used when you refresh, reload and re-render the value of an element when you want the update the value of any element.

NOTE: You can also follow the documentation link.


@Shubhamkumar1 , I was not able to see the entity path in this dropdown. Pls confirm, data will be copied from path right?

@tushar.jain , First you have to create a data model and link that one into your app. Only then you will be able to see the entities listing in the “Copy From” and “Copy To” field.
You can refer to the below link for “How to create a Data-model” and “How to link your data-model to your app”.


Thanks for the clarification.

Your most Welcome @tushar.jain.
